Restaurant Back Bar Design: Bottles, Glasswashing, Lighting, and Service Flow

At 9:11 on a Friday night, the bar is only three tickets behind, but it feels much worse. A server has returned six wine glasses beside the clean rack. The bartender needs the same bottle twice in thirty seconds and turns around for it both times. One guest is waiting to pay where another guest is supposed to collect a drink. The glasswasher door opens into the polishing position. A bottle delivered that afternoon is still in its carton under the only lowered counter.

Nothing in that scene is dramatic enough to appear in a design presentation. Together, those small frictions decide whether the bar feels calm, whether a drink takes four minutes or nine, and whether the closing team leaves on time.

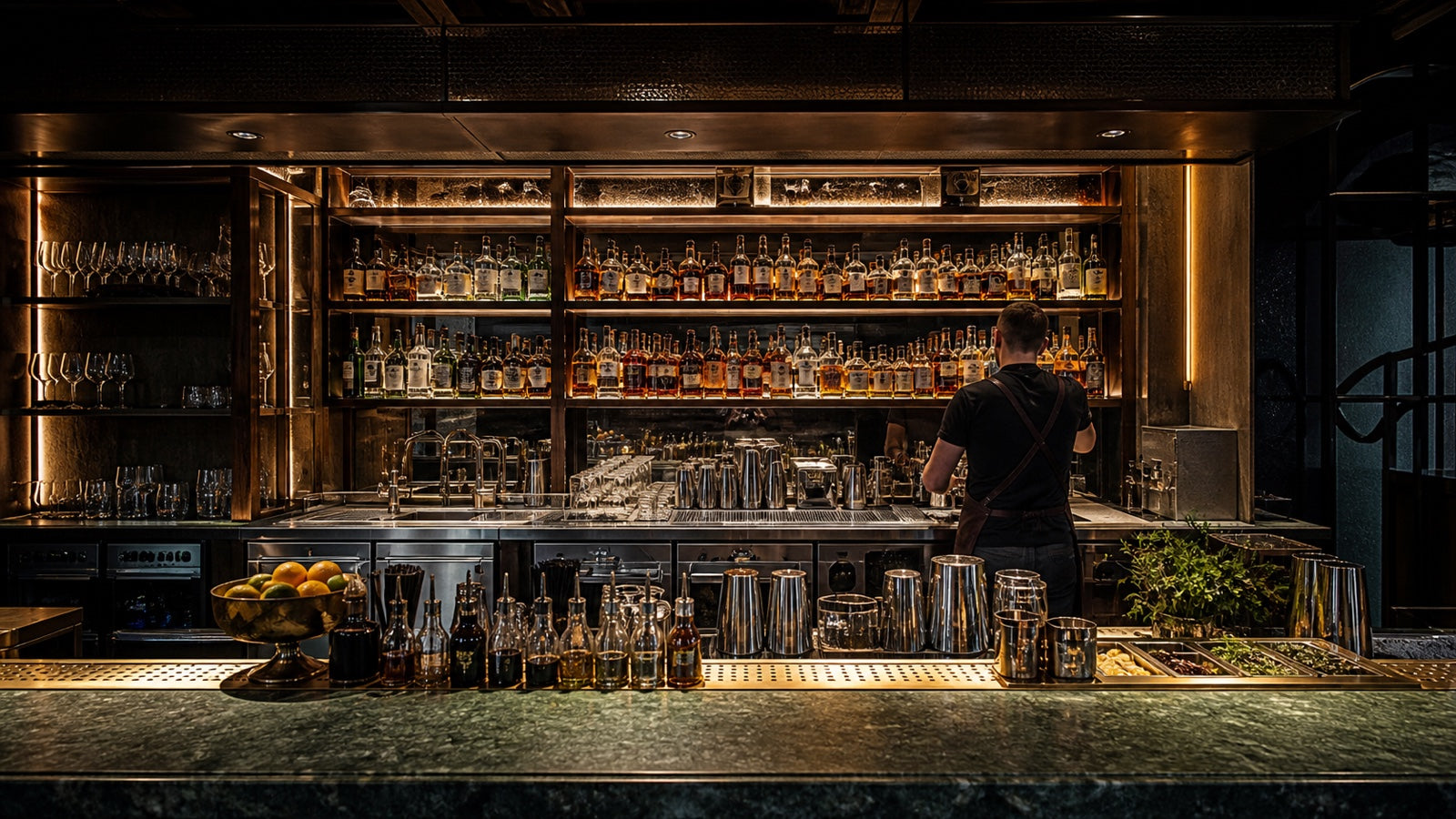

The Copperglass Aperitif Bar is an AI-generated concept study built around that unglamorous sequence. The order landing, seated counter, lowered service point, pickup landing, handwash sink, ice, chilled garnish, glasswasher, drainboard, clean storage, and dirty return each have a position. Three copper-and-mosaic pendants light the guest side. A small tree-ring canvas occupies a dry wall, and one torso sculpture sits inside a protected niche rather than among bottles or clean glasses.

The image is not an installed project or proof of dimensions, staffing, accessibility, hygiene, food safety, plumbing, ventilation, light output, product construction, or code compliance. It is a working hypothesis. The useful question is not whether your finished bar should look like it. The question is whether your plan can explain every movement just as clearly.

Begin with the drinks, not the bottle wall

A backbar elevation is tempting because it is easy to admire. Rows of bottles, warm shelves, mirror, brass, and glass make an immediate presentation. They say little about how the team will build a round.

Start with the actual menu and sales mix. List the twenty most frequently made drinks, their glassware, ice, garnish, spirits, mixers, tools, preparation time, and whether they are made at one station or several. Add wine by the glass, beer, zero-proof drinks, water, coffee, and any food handoff that touches the bar. Then mark which ingredients must be refrigerated, protected, dated, washed, drained, or replenished.

A bar that serves mostly spritzes and wine needs a different work line from a high-volume cocktail bar. A restaurant bar making twelve cocktails before dinner and two hundred during a late sitting needs both modes. Design the peak round first; the bottle display can be composed around the resulting operation.

Draw seven paths before drawing millwork

Use separate lines for arriving guests, seated bar guests, servers placing orders, finished-drink pickup, dirty-glass return, bartender production, and stock replenishment. Add courier or takeaway movement if packaged drinks are part of the business. Mark every pause, turn, reach, door swing, tray landing, and point where two people need the same floor area.

The lines should meet at deliberate handoffs. A server can collect a drink from a landing that the bartender can reach from the clean side. Dirty glass can arrive near warewashing without crossing that landing. Stock can enter through a gate without passing behind occupied stools. A guest can order and pay without standing in front of pickup.

Do not clean up the drawing to make it presentable. The knot of colored lines is the evidence. If five routes converge at one counter corner, the answer is rarely a prettier corner.

Separate order, payment, seating, and pickup

These functions may share one physical bar, but they do not create the same pause. Ordering involves conversation. Payment may require a device, receipt, signature, or split bill. Seated service needs elbow space and a protected drink position. Pickup needs a clear landing and an unmistakable owner.

Give each function a location that remains recognizable when the room is busy. A subtle change in counter height, edge, overhead light, or gap between stools can be enough. Avoid decorative signs that the team later covers with equipment. The plan should still make sense after every temporary label has fallen off.

Test a walk-in order at the same time as a server collects four drinks and a seated guest asks to close a tab. If the three conversations happen across one payment terminal, redesign the handoff before adding more technology.

Make accessible service part of every relevant transaction

A lowered counter is not useful when it sits around the corner, holds spare menus, or offers order service while pickup remains at a higher point. In the United States, the 2010 ADA Standards treat order and pickup as different services and address service counters, dining surfaces, routes, clear floor space, approaches, and knee and toe clearance. The exact requirements and other applicable standards depend on the project and jurisdiction.

Coordinate the order point, payment device, pickup, and bar dining with an accessibility professional and disabled users. Check approach from the entrance, turning, visibility, speech and hearing, device reach, bag placement, glass placement, and the route away from the counter. A front approach needs real open space below; a dark cabinet recessed by a few centimetres is not knee clearance.

Keep the position empty during every shift. Give the items that usually migrate there—parcels, chargers, receipts, water jugs, sanitizer, and delivery tablets—dedicated homes elsewhere.

Build the bartender station in the order of use

Take the best-selling round and perform it at a full-size cardboard or plywood mockup. Include the selected bottles, actual glass racks, ice scoop, shakers, jiggers, garnish inserts, water, waste, cloths, and printer or screen. Film the sequence from above if the team agrees. Count steps, full turns, repeated reaches, and occasions when one hand has nowhere safe to put an object.

High-frequency ingredients belong within a controlled primary reach. Secondary bottles and back-up tools can sit farther away. Heavy stock should not require a high reach. A bottle that appears in one drink a week does not deserve the same position as the house spirit.

A speed rail is not an excuse to store every bottle at knee level. Select its contents from sales data, secure it, protect labels and hands from wet impact, and leave space for cleaning behind and below. Rehearse removal, replacement, and breakage without dismantling the station.

Run dirty glass in one direction

The dirty-glass route begins where a guest or server sets down a used item. It continues through landing, sorting, emptying, pre-treatment where required, washing, draining, cooling, inspection, polishing if part of the operation, and clean storage. Draw the whole sequence.

Do not place the first dirty landing beside the final clean rack because both seem related to glass. They represent opposite ends of the process. Give used glasses enough stable landing capacity for the peak, not the average minute. Separate broken glass, sharp objects, straws, napkins, fruit, and liquids according to the operation and applicable safety and waste procedures.

Then make the clean route shorter. A washed rack should reach its drain and storage position without passing the dirty drop, ice, garnish, or guest pickup. If staff polish, provide suitable light, posture, landing space, and a safe response to a glass breaking in the cloth.

Size the glasswasher around cycles and racks

A manufacturer’s cycle time is not the same as practical capacity. Add loading, unloading, sorting, draining, cooling, inspection, faults, and the moment when the bartender is too busy to open the door. Count each glass type used during the peak and the number held in drinks at once.

Coordinate water, drainage, ventilation, heat, steam, chemical storage and dosing, electrical load, service access, noise, door swing, rack storage, and floor conditions from the selected equipment data. Make room to remove the machine without cutting apart the bar. Check what happens when it fails on Saturday night.

Store enough clean glassware to bridge normal peaks and one realistic interruption, but do not build towers that are hard to reach or inspect. Define where extra racks live and how they enter the station without blocking the staff aisle.

Protect the handwash sink from migration

A handwash sink often begins with perfect clearance and slowly acquires a shaker, bottle opener, towel, brush, ice scoop, and empty glass. Design the nearby homes that prevent that migration. Keep the approach obvious, the basin usable, and the required supplies available according to the operation and applicable rules.

The FDA Food Code is a model used by many U.S. jurisdictions, not a substitute for the locally adopted code. It addresses handwashing, contamination, equipment, utensils, water, ice, food storage, and cleaning in much greater detail than an interior article can cover. Confirm the adopted requirements and the menu process with the authority having jurisdiction and qualified food-safety professionals.

Do not let a decorative bottle shelf or electrical fixture make the sink hard to clean. Test elbows, soap use, towel disposal, splash, and the route from dirty tasks to handwashing with another bartender at the station.

Treat consumable ice as food

Ice has a delivery route, protected storage, scoop, drainage condition, refill method, cleaning schedule, and contamination risk. Keep bottle necks, used glass, fruit scraps, cloths, and hands out of the bin. Provide a suitable protected scoop position according to the approved procedure. Do not design a shared sink or casual open well because the top looks tidy in an elevation.

Calculate the peak from the drinks, glass size, ice style, ambient conditions, and refill interval. Include melted volume, outages, cleaning, and the distance from production or storage. A bin that is large enough by litres may still fail if its lid conflicts with the garnish rail or the bartender cannot reach the back safely.

Coordinate drainage and condensation. The floor around an ice station should not reveal the problem only after the first humid service.

Keep garnish cold, covered, dated, and reachable

Garnish turns a simple worktop into a food-handling zone. Define what is prepared, where it is washed and cut, how it is stored, when it is dated, what temperature or protection it needs, which utensil serves it, and what happens at closing. Do not infer a safe process from a row of attractive open trays.

Place the chilled rail where it supports the drink sequence without sitting beneath decorative lights or in the path of dirty glass. Check lid swing, insert removal, drainage, refrigeration service, cleaning edges, and visibility. A lid that collides with a shelf will be left half-open during service.

Measure portions from real sales. Large displays create more exposure and waste. Smaller inserts with disciplined replenishment often give the bartender better reach and the closing team less to discard.

Design bottle storage by frequency, weight, and risk

Divide stock into primary service bottles, secondary service bottles, display bottles, unopened back-up stock, high-value stock, and empties. Each group needs a different position. The most expensive bottle is not automatically the bottle that belongs highest and most visible.

Put weight where staff can handle it safely. Protect bottles from edges, vibration, heat, direct sun, guest reach, gate impact, and shelf deflection. Confirm actual bottle heights and diameters; sparkling wine, decanters, bitters, and unusual shapes quickly defeat a generic elevation.

Set shelf capacity from an inventory rule. When a shelf has no maximum, deliveries expand the display until labels overlap and cleaning becomes a monthly event.

Engineer shelves before styling them

Backbar shelves carry concentrated, fragile weight. Coordinate shelf material, span, thickness, brackets, wall construction, fixings, edge restraint, seismic requirements where relevant, glass retention, impact, heat, cleaning, and safe access with the project team. Include the weight of the shelf itself, lighting, wiring, bottles, and any decorative object.

The Restaurant Wall-Mounted Display Shelf offers two- and three-layer gold iron forms. Its current page does not establish dimensions, load rating, fixings, bottle restraint, commercial suitability, or use in a wet service zone. Treat it as a decorative dry-wall display candidate only after the delivered unit, wall, anchors, loads, edge protection, fire performance, cleaning, and professional installation are verified. It is not a substitute for an engineered bottle shelf.

Pull-test and load-test the specified assembly as required by the project. A beautiful shelf should not depend on a product photograph for structural evidence.

Decide how many bottles the guest should see

More bottles do not always make a bar feel more generous. Dense shelves increase dust, label noise, reflections, restocking time, mis-picks, and the temptation to store duplicates wherever they fit. A narrower edited display can make the offer easier to read and leave room for task light.

Build the display around menu categories and staff logic. Keep a clear inventory map behind the scenes. Rotate promotional or seasonal bottles through a defined zone rather than allowing sales materials to colonize the whole backbar.

Stand at the entrance, seated bar, dining room, and service pickup. The bottle wall should support orientation and atmosphere without becoming the brightest or busiest surface in every view.

Keep sightlines through the bartender, not only toward bottles

A backbar is also a workplace backdrop. Guests need to see a face. Bartenders need to see approaching orders, seated guests, pickup, the entrance where relevant, and one another. A high rail, bright shelf edge, dangling fixture, or dense glass rack can interrupt those lines.

Draw standing and seated eye levels. Include the actual depth of bottles and glasses. Test reflections after dark. A mirror that appears to enlarge the room can also show the waste bin, multiply task glare, or make staff misread movement at the gate.

For a darker comparison, The Midnight Bar uses a dramatic decorative layer around a compact drinks room. Read it alongside Copperglass and ask which surfaces help the operation after the novelty of the first impression has passed.

Separate guest light, task light, route light, and display light

One dimmer cannot solve four jobs. Guest light supports faces, drinks, menus, and atmosphere. Task light supports measurement, color, labels, cleaning, breakage inspection, and payment. Route light makes floor edges, gates, and changes in level readable. Display light gives the backbar depth without flattening every label.

Put each layer on a suitable circuit and control zone. Plan opening, daylight, early dinner, late service, cleaning, delivery, and emergency conditions. Set a maximum late-night dim level for the work surfaces and routes so atmosphere cannot erase safe operation.

Mock up the actual finishes and glassware. Copper, mirror, mosaic glass, polished stone, and bottle shoulders can produce bright reflections even when the measured light level seems modest.

Keep decorative pendants over the guest side

The Japanese Copper & Glass Pendant Light for Restaurants currently offers five glass forms. The Round Mosaic Glass variant used in Copperglass has a small clear mosaic shade and copper-toned fitting; the page lists copper, glass, one light source, no included source, 111–240 V, and one ceiling light per pack. The bedroom/study description and broad irradiation claim do not prove bar suitability.

Confirm delivered dimensions, weight, canopy, cord, lamp base, approved source, output, distribution, color temperature, color rendering, glare, dimming, voltage, certification, ceiling structure, cleaning, fire requirements, and professional installation. In the concept, three pendants sit above guest stools, not above handwashing, ice, garnish, glasswashing, pickup, payment, or the service gate.

Hang a real sample over the real counter mockup. Check faces across the bar, bottle reflections, bartender sightlines, seated head clearance, stool spacing, and the view from outside.

Use a linear pendant only when the work below is truly linear

The Modern Linear LED Pendant Light for Restaurant Bars offers black and white forms across several supplier size labels and warm, three-color, and “Infinity” descriptions. Its page lists an included LED source, iron, a PMMA shade, and 111–240 V, but the exact output, dimensions, control behavior, and meaning of the variant names need confirmation.

A linear fixture can reinforce a long guest counter, but it also exaggerates any misalignment between stools, counter joints, and service zones. Do not run it over a gate, lowering, sink, or mixed-height ceiling simply to complete a graphic line. Confirm suspension points, driver access, structural loads, glare from both sides, color quality, dimming, maintenance, and the effect of one failed segment.

Compare a full-length mockup with several smaller sources. The quieter solution is the one that keeps faces and work readable without turning the ceiling into a diagram.

Give circulation a dependable light layer

Late-night atmosphere often fails first at the route behind stools, the service gate, and the turn toward the washroom. Concealed or compact architectural fixtures can support those edges without competing with the decorative bar lights.

The Surface-Mounted LED Ceiling Light for Restaurant Corridors currently spans six form labels and warm, white, neutral, three-tone, and stepless-dimming descriptions. The listing mentions an acrylic ceiling light, remote control, 220 V, a 200 mm dimension, and one light, while leaving important output and driver details unresolved.

Confirm the exact form, dimensions, lumen output, beam, color temperature, color rendering, glare, driver, control protocol, dimming behavior, voltage, certification, emergency-lighting relationship, fire requirements, cleaning, and qualified installation. Required route and emergency illumination must come from a coordinated compliant system, not a decorative product name.

Keep portable lamps on dry guest tables

A cordless lamp can carry the warm bar mood into nearby two-tops. It should not become a movable task light for the bartender or occupy order, payment, pickup, accessible, or drink-production surfaces.

The Vintage Dimmable USB Table Lamp for Restaurant Bars offers bronze, rose-gold, and space-silver finishes across A, B, and C model labels. The current page lists metal, USB, no more than 36 V, three-color plus stepless dimming, one lamp, one charging line, and one manual. It does not provide enough information to accept runtime, battery, spill, stability, or commercial-use performance without testing.

Run a delivered sample through a full shift at the approved setting. Record runtime, charge time, heat, glare, stability, cleaner response, dimming memory, color variation, cable condition, and battery fault procedure. Give every lamp a numbered charging position and remove damaged units immediately.

Design reflections after dark

Photograph the material mockup from every guest and staff position at the darkest planned scene. Look for reflected lamps in mirrors, bottle doors, glass racks, stone, metal edges, payment screens, and framed art. Move your head; a bright spot that is harmless from one chair may hide the bartender’s face from the next.

Use small shields, shelf lips, frosted channels, changed angles, lower brightness, or a more matte finish where required. Avoid solving glare by dimming the entire work line. Task light and decorative light should be adjustable independently.

Check cleaning too. Fingerprints and dried spray are more visible under grazing light. If the backbar needs to be polished every thirty minutes to look acceptable, the lighting and material detail are creating labor.

Divide the bar into wet, dry, hot, and protected finishes

Map splash from sinks, glasswasher steam, ice melt, citrus, alcohol, coffee, cleaning chemicals, and guests setting down wet glassware. Keep absorbent edges, unsealed joints, decorative paper, vulnerable metals, and electrical penetrations out of those zones. Coordinate upstands, falls, drips, seals, removable parts, and access to the surfaces behind equipment.

Use samples with the real cleaner, sanitizer, citrus, wine, spirits, coffee, and standing water. Leave them for realistic durations. Assess staining, color change, edge swelling, corrosion, slip, odor retention, and how a repair will look.

A material can be durable yet impossible to replace discreetly. Define module sizes and spare stock before opening.

Specify copper for the patina you can maintain

Copper can arrive bright, darken unevenly, show fingerprints, react to chemicals, and change differently near heat or moisture. Decide whether the desired finish is polished, sealed, brushed, aged, or allowed to patinate. Write the maintenance standard in plain language.

Build a sample with the actual edge profile and substrate. Test guest contact, bar cloths, citrus, alcohol, cleaner, and repeated polishing. Check whether a damaged seal can be locally repaired without creating a bright patch.

Use copper as a controlled line rather than covering every surface. In Copperglass, the metal defines counter edges and relates to the pendant fittings. Smoked oak, charcoal, oxblood leather, and grey terrazzo do most of the visual work.

Keep artwork on a genuinely dry wall

The Frameless Restaurant Canvas Art Print offers Astyle, Bstyle, and Cstyle at 20 × 30 cm. Its current page lists canvas, inkjet printing, an unframed presentation, and one canvas painting. The Bstyle used in Copperglass shows overlapping charcoal tree rings with copper-tan linework.

Confirm the exact artwork, crop, dimensions, color, delivered edge and backing, whether it arrives rolled or stretched, mounting method, weight, anchors, fire performance, fade and moisture resistance, cleaner compatibility, and chair clearance. Keep it away from glasswasher steam, wet wiping, citrus spray, bottle impact, and the working backbar.

Small art can be a relief in a room of shelves. Let the scale remain small if that is the point; do not enlarge every motif into a feature wall.

Put sculpture in a protected niche, or leave it out

The Half-Body Plaster Figurine Sculpture currently offers A3234 and A3235. Its title says plaster, while the description lists plastic, resin, and synthetic resin. The A3235 reference shows a small weathered torso around 24.5 cm high on a thin support and round base; that scale and material still need to be confirmed on delivery.

A protected niche keeps the object out of bottle handling, glass storage, ice, garnish, payment, pickup, and guest reach. Coordinate shelf load, restraint, glass retention, ventilation, heat from lighting, access for cleaning, fire performance, and safe removal. If the niche cannot be cleaned without lifting the sculpture over a working counter, it is in the wrong place.

One object is enough. A row of figurines turns an edited focal point into another shelf to inventory.

Treat trays and bowls as décor unless food-contact use is proven

The Modern Organic Black 20cm Decorative Accent Tray is described as a 20 × 20 × 5 cm, 1,565 g supplier-listed stone bowl-style tray. Its page explicitly presents it as decorative and does not represent it as food-contact safe, heat resistant, or suitable for open flame.

That makes it a possible dry host-console or protected display object, not a garnish bowl, citrus tray, candle holder, tip dish, wet-bar organizer, or vessel for food. Confirm the delivered surface, weight, base, edge, cleaner response, furniture protection, and safe position. Keep it off service landings and the lowered counter.

When a decorative item repeatedly gets repurposed during service, the operation is telling you that a real tool or container is missing. Supply the correct item rather than normalizing the improvisation.

Plan stools with bodies, bags, and turning space

Draw the stool pulled out, occupied knees, elbows, a coat, and a bag. Then draw the guest standing while another person passes behind. Check foot support, seat comfort, transfer options, edge contact, stability, upholstery cleaning, replacement, and the relationship between stool centers and pendant centers.

Keep the accessible bar or service position equivalent and integrated according to the project requirements. Do not store a loose stool in its clear space. If the lowered position is used for dining, coordinate its surface, knee and toe clearance, route, seating choice, view, and service with the accessibility team.

Set a maximum stool count. Extra seats added on a busy night can block the gate, pickup landing, or route that made the bar work.

Give bags, coats, and phones a deliberate position

Guests will place belongings somewhere. Without hooks, ledges, or bag positions chosen for the project, phones sit beside spills, coats cover stool backs, and bags narrow the route. Coordinate capacity, visibility, theft risk, snagging, accessibility, fire safety, cleaning, and staff policy.

Do not put hooks where a bag collides with knees, wheelchairs, service trays, or the bartender side of the counter. Test the largest ordinary coat and bag, not a small sample.

Provide dry charging only if the business intends to support it. A guest cable stretched toward a bar outlet is not a service feature.

Control sound at the glass and metal sources

Bars produce impact noise: bottle on stone, glass into rack, ice into tin, washer pump, drain, blender, fridge compressor, stool foot, and a gate closing. Music and voices then rise to compete. Treat each source before adding absorptive panels as a general cure.

Specify soft-close hardware where suitable, isolate vibrating equipment, cushion rack landings with approved cleanable materials, control door stops, and select ceiling and wall absorption that survives the environment. Keep absorptive finishes away from direct splash and grease where they cannot be maintained.

Listen during a full mock service. A pleasant empty-room reverberation test does not include glassware, music, guests, or a compressor cycling beneath the bartender.

Give waste, recycling, and empties separate capacity

Map glass, cardboard, caps, corks, compostable garnish, general waste, liquids, broken glass, and any returnable containers. Provide enough capacity for the longest interval between safe removal. Keep openings reachable without stepping into the guest path or opening a door into another station.

Define where full containers go and how they reach the waste room. A bartender carrying a leaking bag through the pickup route undoes careful front-of-house planning.

Check smell, pests, sharp edges, fire load, floor cleaning, handwashing, lifting, and after-hours security with the project team. Hidden waste is still part of the elevation if its door remains open all night.

Build a replenishment route that does not enter the performance

Trace a bottle case, ice supply, glass rack, garnish container, cleaning chemical, and CO2 cylinder or other system used by the operation from delivery to final position. Include door widths, thresholds, lifts, stairs, turning, storage, weight, staff access, and temporary landings.

Set refill quantities. The bar should receive enough stock to continue service without becoming an unpacking table. Closed back-up storage keeps cartons and duplicate bottles away from guest sightlines.

Rehearse replenishment while every stool is occupied and pickup is busy. If stock must cross the gate every three minutes, move the storage or change the par level.

Coordinate security without making service hostile

High-value bottles, cash, payment data, keys, knives and tools, chemicals, and personal belongings need controlled positions. Define what is locked, who has access, what is counted, where a discrepancy is recorded, and how the bar is secured at closing.

Preserve staff sightlines and avoid placing tempting objects at an open gate or within easy guest reach. Coordinate cameras, alarms, lighting, privacy, and local requirements without letting visible security equipment dominate the room.

A mirror can create blind spots as easily as it removes them. Walk the closing route with the final shelves, bottles, and lighting installed.

Adapt the sequence to the size of the bar

A six-seat restaurant bar may combine functions into one disciplined station. A larger cocktail room may duplicate stations, separate service-bar production from guest service, and provide dedicated glasswash and stock routes. Duplication adds resilience but also equipment, labor, plumbing, cleaning, and inconsistency.

Use sales by fifteen-minute interval, drink mix, staffing, ticket channels, glass inventory, and replenishment frequency to decide. One excellent station can outperform two incomplete stations. Two stations can outperform one only when each has the right support and the team knows how work is divided.

Plan the failure mode. When one ice well, terminal, dishwasher, refrigerator, or drain is unavailable, define what continues and what stops.

Mock the bar at full scale before ordering finishes

Build the guest counter, lowered position, bartender line, shelves, equipment blocks, gate, stools, bottle shapes, racks, and overhead fixtures at real size. Use the actual team where possible and include left- and right-handed staff, different heights, disabled staff or users, and the people who clean and maintain the bar.

Run a measured peak. Make the ten best-selling drinks, one unusual order, a spill, a broken glass, a dirty-rack surge, a payment problem, a stock refill, an accessible transaction, a washer fault, and closing. Record ticket times, steps, crossings, reaches, queues, and items placed in the wrong zone.

Revise the plan, then repeat. A mockup costs less than moving a drain, rebuilding a stone counter, or accepting a bad crossing for the life of the restaurant.

Commission the bar through opening, peak, and closing

Commissioning is not the moment every light turns on. Verify equipment, water, drainage, ventilation, refrigeration, washer cycles, chemical dosing, seals, shelves, fixings, door swings, controls, payment, network, acoustics, cleaning access, and lighting scenes under real operating conditions.

Label isolation points and controls in the staff system, not on the guest-facing elevation. Train the team on handwashing, ice, garnish, dirty and clean glass, breakage, accessible service, restocking, waste, battery charging, decorative-object care, spills, faults, and shutdown according to the approved procedures.

Review the bar after one week, one month, and the first very busy event. The best evidence arrives after the opening photographs, when people begin moving objects to make the station work.

Restaurant backbar sign-off checklist

• The menu, fifteen-minute sales mix, glass types, ice, garnish, tools, and station capacity are documented.
• Guest arrival, seated service, server orders, pickup, dirty glass, bartender work, and replenishment paths are drawn together.
• Order, payment, seating, and pickup remain distinct during the measured peak.
• Accessible routes, service counters, pickup, dining, approaches, clear space, and knee and toe clearance are reviewed for the project.
• The handwash sink remains visible, supplied, and clear of tools and glassware.
• Consumable ice and garnish have approved storage, utensils, protection, temperature, drainage, cleaning, and replenishment procedures.
• Dirty glass runs from landing to washing without crossing clean storage or pickup.
• Glasswasher capacity includes loading, draining, inspection, faults, heat, steam, chemicals, racks, and service access.
• Bottle shelves have verified loads, spans, fixings, edge restraint, safe access, cleaning, and stock limits.
• Guest, task, route, display, cleaning, and emergency lighting are coordinated and independently controlled where required.
• Pendants stay over suitable guest zones, while route and work lighting remain dependable.
• Wet, dry, hot, and protected material zones were tested with real liquids and cleaners.
• Artwork, shelves, sculpture, trays, and portable lamps remain outside food, ice, glasswash, payment, pickup, and accessible surfaces.
• Stools, bags, coats, service gates, waste, stock, and full racks fit without narrowing required routes.
• Noise, security, breakage, spills, equipment failure, opening, peak, closing, and evacuation were rehearsed.

Frequently asked questions

What is the difference between a front bar and a backbar?

The front bar is the guest-facing counter and the working equipment immediately behind it: service surface, stools, order and payment points, pickup, sinks, ice, garnish, rails, refrigeration, glasswashing, and storage. The backbar is the wall-side storage, display, lighting, and support zone behind the bartender. In practice they must be planned as one system because every turn between them affects speed, safety, sightlines, and cleaning.

How deep should a restaurant backbar be?

There is no universal depth that proves the bar will work. Bottle sizes, shelf type, restraint, glass storage, refrigeration, access, structure, lighting, cleaning, bartender aisle, front-bar equipment, and applicable requirements all affect the section. Draw and mock the selected bottles and equipment at full scale, then test reach and cleaning with the actual team. Do not copy one nominal dimension from a residential wet bar.

Where should the glasswasher go behind a bar?

Place it within a one-way dirty-to-clean sequence: used-glass landing and sorting, washing, draining and cooling, inspection or polishing, then clean storage. Keep the dirty return away from finished-drink pickup, ice, garnish, and clean racks. Coordinate door swing, heat, steam, noise, water, drainage, chemicals, electrical load, rack storage, service access, and the route used when the machine fails.

Should bottle shelves have mirrors behind them?

Mirrors can add depth and bounce light, but they also multiply glare, labels, fingerprints, equipment, waste, and movement. Test a full-size sample after dark from seated and standing positions. Check bartender visibility, security sightlines, shelf lighting, cleaning labor, and whether a reflected pendant hides the bottle label or the person serving the guest. A dark or lightly textured back panel may produce a calmer result.

How do you make a restaurant bar accessible?

Coordinate the complete service with the requirements and specialists applicable to the project. That includes the route to the bar, order, payment, pickup, equivalent dining, counter height and depth, clear floor space, approach, knee and toe clearance where required, device reach, communication, stool management, and the route away. Keep every accessible position clear during operation. In the United States, use the current ADA regulations and 2010 Standards as part of that review rather than relying on an image or a single counter dimension.

A good backbar does not make the bartender perform faster. It removes the reasons they have to stop: the second turn for the house spirit, the clean rack beside the dirty drop, the garnish lid that hits a shelf, the guest paying in the pickup lane, and the carton stored under the only usable lowered surface. When the last drink of the night follows the same clear sequence as the first, the room has earned its atmosphere.
