Restaurant Bar Lighting: A Layered Plan for Counters, Bottles, Tables, and Service

A bartender can usually tell when a room has been lit for a photograph instead of a service. The countertop looks dramatic from the entrance, but a bottle label disappears behind the speed rail. Guests lean toward the candle to read the menu. The brightest downlight lands on an empty patch of floor, while the glasswasher corner is a cave.

Good restaurant bar lighting is less about finding one impressive fixture and more about giving each part of the room the light it needs. The counter, backbar, tables, walls, and circulation route are separate jobs. When they are layered and controlled independently, the bar can feel intimate without becoming difficult to operate.

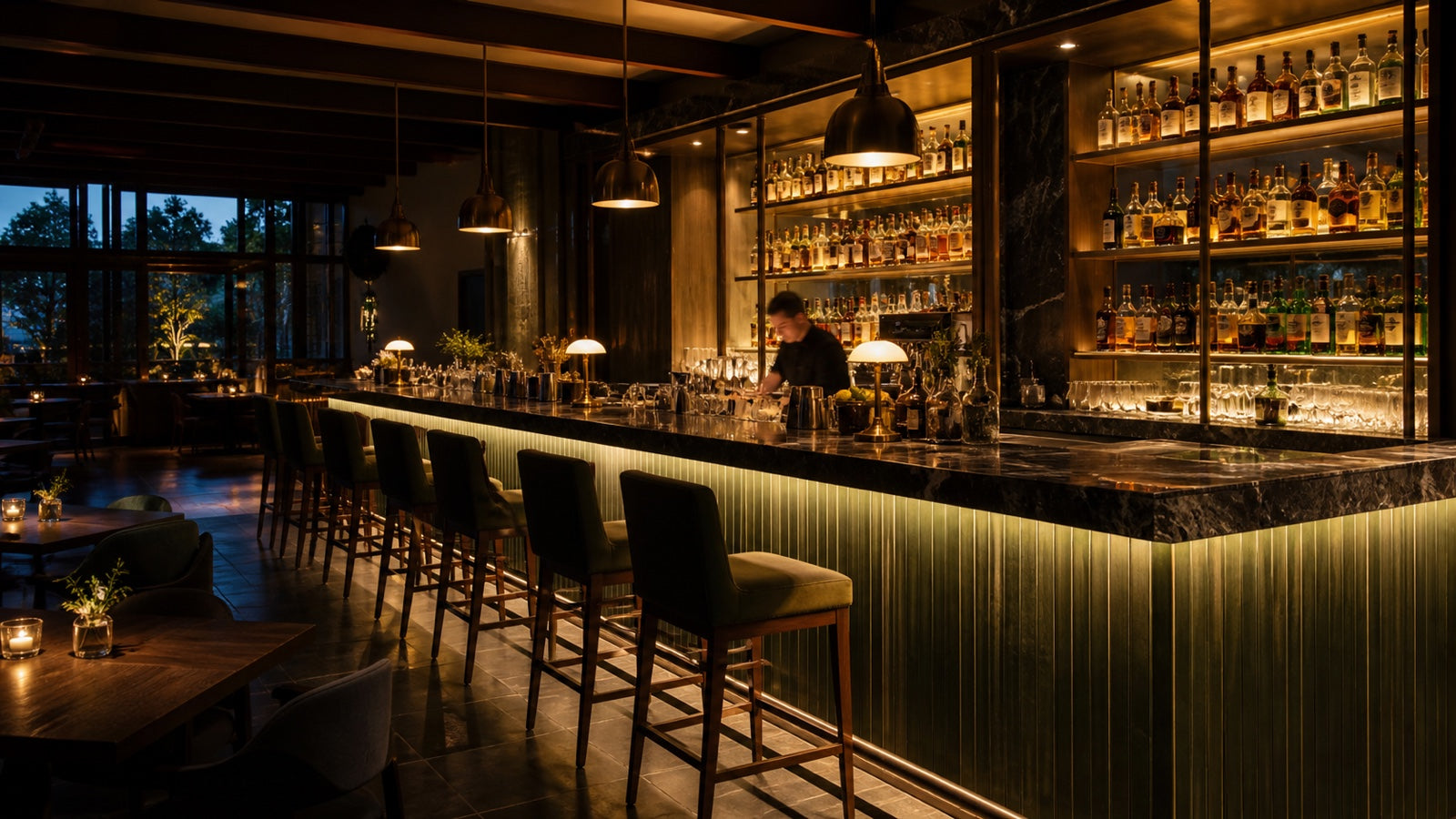

This guide uses The Concrete Wine Room as a working example. Its image is an AI-generated concept study, not a photograph of an installed project or proof of an exact product finish. The room is useful because the decorative pieces, bottle display, seating, and service route can be evaluated together.

Start with the bar's jobs, not its fixtures

A bar counter is simultaneously a work surface, a guest seat, a pass, a display, and a social boundary. One light level cannot handle all of those roles equally well. Before choosing pendants, mark the activities that happen along the counter during a normal service.

Where are drinks built? Where do guests sit? Which section receives food? Where are payments taken? Which bottles need to be read quickly? Does anyone cross behind a seated guest with a tray? The answers establish the useful lighting zones before style enters the conversation.

A small wine bar may only need six zones:

1. Arrival: enough light to understand the door, host position, and first change in floor level.
2. Working counter: even task light for pouring, garnishing, checking glassware, and handling payments.
3. Backbar: controlled light that makes bottle shapes and labels readable without creating a bright wall of glare.
4. Guest tables and bar seats: warm local light for faces, menus, and drinks.
5. Circulation and service: quiet but continuous light through aisles, corners, and doorways.
6. Feature surfaces: one or two visual anchors that give the room depth when seen from the entrance.

Draw those zones on the floor plan, then decide which can share a control. In a very small room, one fixture may contribute to two jobs, but it should still have a primary purpose. That discipline prevents the ceiling from filling with decorative objects that do not solve a service problem.

Make the counter clear without making it clinical

The working side of the bar needs more clarity than the guest side. That does not mean flooding the whole counter with cool white light. It means providing an even, shielded layer where hands, tools, liquid levels, and payment devices are easy to see.

A Modern Linear LED Pendant Light for Restaurant Bars can be evaluated as the main visual line over a straight counter. In the Concrete Wine Room, the fixture follows the length of the bar and reinforces the perspective of the narrow space. Its shape is calm enough to repeat without turning the ceiling into a collection.

Before specifying any linear pendant, confirm the dimensions of the selected variant, the suspension range, light output, color temperature, dimming compatibility, and how the light is distributed. A beautifully slim fixture can still be the wrong tool if it creates a hard stripe on polished stone or leaves the bartender working in their own shadow.

Check the light from both sides of the counter

Stand where the bartender stands and where the guest sits. From the service side, look for hand shadows, reflections on stainless steel, and dark areas around the till or garnish station. From the guest side, check whether the source is visible in a mirror, bottle, glass, or glossy countertop.

If the counter carries pendants, keep the brightest surface above the main seated sightline and away from the bartender's direct view. The exact height depends on the fixture, ceiling, bar depth, and room geometry. The practical process is to hang a sample temporarily, seat people of different heights, and test it through a service rehearsal.

Light the backbar in layers, not as one glowing wall

Backbar lighting often gets brighter as more shelving is added. The result can be visually flat: every bottle receives the same emphasis, mirrors multiply the sources, and the guest sees a bright rectangle instead of depth.

Use concealed shelf light where labels need to be scanned quickly, then allow some shelves to remain quieter. The working row can be clearer than the display row. A narrow top or side light can separate bottle silhouettes without blasting through clear spirits. If the shelves include reflective metal, mirror, or fluted glass, mock up one full bay before repeating the detail.

The best test is not an empty shelf. Load it with the actual mix of green, amber, clear, and opaque bottles. Add real stemware. Then view the backbar from the entrance, from a seated stool, and from the bartender's position. A setting that looks balanced when empty can become chaotic once glass and labels multiply every reflection.

Keep bottle light and decorative light on different controls

The shelves may need a brighter scene before opening and a lower scene after the room fills. Decorative pendants may need the opposite adjustment as daylight fades. If both are on one circuit, staff will have to choose between readable bottles and comfortable guests.

Separate control also makes cleaning easier. A brighter backbar scene can reveal dust, drips, and fingerprints without becoming the public evening scene.

Bring atmosphere down to the guest instead of lowering the whole room

When a bar feels too bright, the instinct is often to dim every circuit. That can protect the mood but harm menu reading, facial recognition, and service. A better solution is to keep a modest ambient floor and add warmth close to where people sit.

The Creative Geometric Restaurant Table Lamp gives the Concrete Wine Room a distinct table-level silhouette. Its open loop shape repeats the black metal lines elsewhere in the room, while its illuminated edge identifies the tabletop without placing another object overhead.

For a quieter alternative, evaluate a Rechargeable LED Bar Table Lamp on the narrowest two-top and at a fully set bar place. Check the base footprint, charging routine, stability, controls, and how the light behaves beside a wine glass. A lamp that looks compact in a product photograph may still occupy the exact space needed for water, bread, a menu, and a guest's phone.

Write the charging routine before buying multiples

Cordless table lamps are operational equipment as well as décor. Decide where they are stored, who charges them, how staff identify a low battery, and what happens when a lamp fails mid-service. A numbered shelf or simple rotation system is more useful than discovering at 7:45 p.m. that half the room was returned to the wrong chargers.

Run the lamps through a full-length service before committing to a quantity. Product pages can tell you the available variants and published specifications; only a real rehearsal shows how the selected setting performs in your room and routine.

Use pendants to describe a zone, not every seat

A pendant can make a bar seat or small table feel intentional, but a one-fixture-per-table rule often creates visual noise. It also makes future furniture changes difficult. If the operator regularly joins two-tops, moves stools, or clears space for an event, the ceiling should not force one permanent layout.

Use a pendant where it defines a fixed architectural element: a bar, communal table, host point, or booth. A Restaurant Glass Single-Head Pendant Light can be considered where a small area benefits from a clear point of light and the glass will not create distracting reflections. A Minimalist Pendant Light for Restaurants and Bars offers another form to compare where the room needs a quieter, more graphic ceiling layer.

Do not assume two pendants that look similar will behave the same. Confirm shade depth, source position, diffusion, beam, finish, drop, and dimming for the exact variant. Then create a full-size cardboard or foam profile and hang it at the proposed height. It is much cheaper to discover a blocked sightline with a mockup than after electrical installation.

Give walls enough light to stop the room becoming a tunnel

Dark bars often concentrate everything on the counter and leave the perimeter black. The room then feels narrower, not more intimate. A small amount of vertical light can reveal texture, make the plan feel wider, and help guests understand where the space ends.

In the concept room, the Artistic Modern Geometric Metal Wall Decor sits on a board-formed concrete wall and catches a directional grazing light. The piece is not expected to glow. Its black circles and lines create a shadow pattern that breaks the wall's scale and echoes the linear fixtures.

Another area may need functional wall light rather than art. An Adjustable Wooden LED Restaurant Wall Lamp is the kind of fitting to evaluate for a corridor, booth edge, or transition where a controlled local layer is useful. Check the mounting, reach, adjustment, electrical requirements, and head clearance against the actual wall and furniture.

Do not light every wall equally

Choose one focal surface from the entrance and one quieter surface deeper in the room. If every material sample, artwork, shelf, and column receives an accent light, the hierarchy disappears. Darkness is useful when it is controlled. The goal is to create enough vertical information for comfort while preserving contrast around the bar and tables.

Protect the circulation route without turning it into a runway

Guests should be able to see floor changes, stool legs, bag straps, doorways, and the route to the washroom. Staff need the same route while carrying glass and plates. This layer should be continuous and glare-controlled, not a row of harsh spots marching down the aisle.

Look for dark gaps between decorative pools, especially beside tall stools and at the end of the bar. Check thresholds after all loose furniture is in place. A plan that seems clear in an empty room can change completely when chair backs, coats, and seated bodies interrupt the light.

Emergency and code-required lighting is a separate life-safety system. Coordinate decorative scenes with the qualified professionals responsible for local electrical, accessibility, fire, and egress requirements. Atmosphere should never depend on making a required route difficult to read.

Choose color temperature and rendering by looking at real materials

A warm number on a specification sheet does not guarantee a flattering room. Concrete, timber, leather, wine, skin, printed menus, and food all respond differently. The source, optics, dimming method, and surrounding finishes influence what guests actually see.

For a dark architectural bar, a warm decorative layer can soften concrete and oxblood leather, while task lighting may need enough clarity for accurate work. Test fixtures beside the final counter sample and upholstery, not a white office wall. Pour red and white wine into the glassware the restaurant will use. Print the menu on the chosen paper. Then dim through the full range and watch for color shift, flicker, glare, and sudden drop-off.

Mixing several visibly different whites can make a small room feel accidental. If two source types must differ, give each a clear job and keep their overlap controlled.

Build four scenes the team can understand

A sophisticated control system is only useful if staff can operate it during a rush. Name the scenes by moment rather than by circuit number.

Place the controls where the team can reach them, label them plainly, and record the intended settings. If staff repeatedly override a scene, treat that as useful feedback. The room is telling you that the preset does not match the work.

A practical mockup checklist before installation

• Mark the exact counter, shelf, table, and circulation zones on the floor plan.
• Hang full-size pendant profiles at the proposed positions and sit beneath them.
• Test one linear fixture over the real counter sample for reflection and hand shadows.
• Load one backbar bay with the actual bottle and glass mix.
• Set the narrowest table completely, including a cordless lamp, menu, water, and shared plate.
• View every bright source from the bartender's position and the lowest seated eye level.
• Walk the service route while carrying a tray under the evening scene.
• Check dimming, flicker, control labels, charging, cleaning, and replacement access.
• Photograph the approved scenes so the opening and closing teams have a reference.

Frequently asked questions

How bright should a restaurant bar be?

There is no single useful brightness for the whole room. The working counter, bottle labels, menu, faces, and circulation route need different levels and distributions. Design and test those zones separately, then balance them into a comfortable scene.

Should bar pendants hang over every stool?

Usually not. Pendants work best when they describe a fixed bar or table zone. Matching every stool can crowd the ceiling and make future layout changes difficult. Start with the architectural line of the counter, then use table or wall light for more local atmosphere.

Are cordless lamps practical in a busy bar?

They can be, provided the footprint, stability, controls, runtime, charging, storage, and cleaning routine work for the operation. Buy one sample and run it through a full service before ordering multiples.

How do you keep a dark bar from feeling gloomy?

Keep the ambient level low but reveal selected vertical surfaces, faces, menus, bottle labels, and the circulation route. Darkness feels intentional when guests can still understand the room and see the things they need.

The best bar lighting makes the work disappear

Guests do not need to notice six lighting zones or four control scenes. They should be able to read the menu, see the wine, recognize a face, and move through the room without thinking about it. The bartender should be able to check glassware and find a bottle without fighting a dramatic shadow.

Explore The Concrete Wine Room to see the linear pendant, sculptural table lamp, wall art, shelving, and service route as one complete concept. Select the product markers, compare the available variants, and adapt the approach to the dimensions, finishes, operating rhythm, and qualified electrical plan of your own bar.
