Restaurant Chef Counter Design: Seating, Pass, Ventilation, and Service

A chef’s counter looks calm before service. The stools make a straight line. Every place setting faces the kitchen. Plates are stacked neatly behind the pass, and the first course has enough empty stone around it to resemble a photograph.

Then eight guests arrive with coats and bags. One chair is too close to the service gate. A pendant reflects in the food-protection screen. The guest at the end can hear the extraction system better than the chef. A plate leaves the kitchen, pauses behind a water glass, and reaches the diner from the wrong side. The counter is still beautiful, but the sequence has started to reveal itself.

A successful chef’s counter is not simply a bar facing an open kitchen. It is a dining room, a pass, a performance line, a workplace, and a circulation system compressed into one edge. The design must support the guest’s posture, the chef’s work, food protection, ventilation, speech, lighting, accessibility, cleaning, and maintenance at the same time.

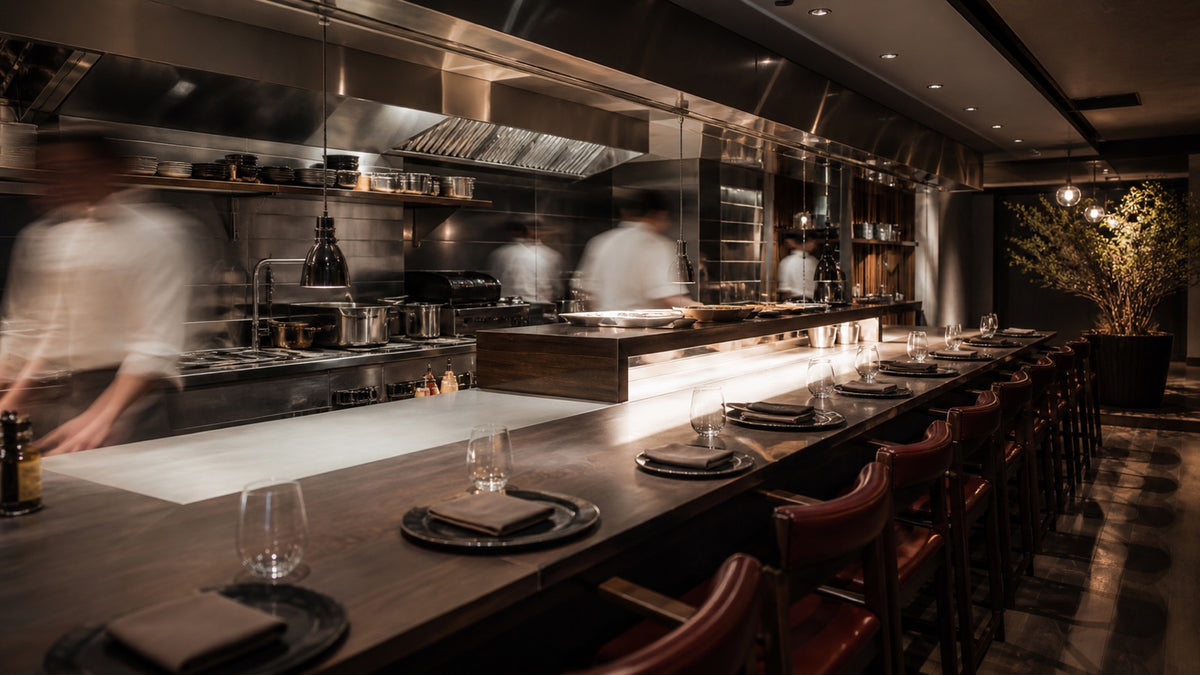

The Onyx Chef’s Counter is an AI-generated concept study built around that overlap. Seven raised stools face a protected open pass, while the eighth position steps down to dining height with a loose upright chair and open knee clearance. One six-globe pendant marks the raised counter, one portrait sits on the arrival-side wall, and one sculpture stays in a protected niche. The image is not an installed restaurant or proof of product scale, output, accessibility, construction, or compliance. It gives us a concrete plan to question.

Decide what the counter is promising

“Guests can watch the chefs” is not a complete concept. Are they watching final plating, live-fire cooking, pastry finishing, sushi preparation, cocktail work, or a complete tasting menu? Will chefs speak to every guest, or will servers explain the food? Does the experience last forty-five minutes or three hours? Are seats sold individually, in pairs, or as one synchronized sitting?

Write one operating sentence before drawing the counter. For example: “An eight-place tasting counter serving twelve courses over two hours, with chefs presenting each course and servers handling beverages, clearing, and payment from the guest aisle.” That sentence affects stool comfort, counter depth, storage, sound, lighting, the number of plate landings, and the location of the service gate.

Then write what guests will not see. Deliveries, dirty-dish sorting, waste, chemical storage, staff belongings, and noisy equipment may need separate routes or screening. Openness works when the visible sequence is intentionally edited, not when every kitchen activity happens in front of a seat.

Draw the guest and kitchen journeys separately

Follow one guest from the entrance to the seat. Where does a coat go? Can the person identify the assigned place without walking behind every stool? Is the chair already pulled out? Where does a bag rest? Can somebody leave during service without moving neighboring guests?

Now follow one course. Start with ingredients and equipment, then trace cooking, resting, plating, finishing, presentation, handoff, clearing, return, scraping, washing, and reset. Mark every point where a clean plate, used plate, utensil, towel, ticket, or explanation pauses. A counter becomes congested when the drawing shows only the final twelve inches between chef and guest.

Overlay the journeys last. Look for crossings at the service gate, the lowered position, the dish return, and the aisle behind stools. If clean food and dirty returns repeatedly share one narrow landing, change the layout before trying to solve the conflict with timing.

Choose the counter relationship before its finish

A raised guest counter can hide some working clutter and separate hands from the pass, but it may place guests above the chef’s plating surface or make food presentation awkward. One continuous level can feel direct and generous, yet it requires a very disciplined clean edge and a clearly protected working zone.

A split-level section can provide a raised dining edge, a lower kitchen landing, and a deliberate barrier between them. It can also become too deep for conversation or too complicated to clean. Build a full-size section with temporary boards. Add the food-protection element, plates, bowls, glassware, menus, napkins, elbows, knees, hooks, equipment, and the thickest edge construction.

Sit on both sides. Can the chef place a dish without reaching over a glass? Can the guest see the finishing work without leaning? Does the counter edge support a comfortable forearm? Is the landing useful, or has it become a long shelf where unnecessary objects collect?

Integrate an accessible dining position

An accessible counter place should belong to the intended experience. It should not appear after staff remove a bar stool and discover the worktop is still too high. Coordinate the relevant local requirements for routes, clear floor space, approach, turning, dining surfaces, knee and toe clearance, reach, seating, payment, doors, washrooms, egress, and communication with qualified professionals.

In the Onyx concept, the final section steps visibly down to dining height and uses a loose upright chair. That is a planning idea, not a verified dimension. Mock up the actual surface with its edge, support, equipment, chair, and neighboring stool. Check the approach from the guest aisle and the line of sight toward the chef.

Avoid turning the lowered place into a service shelf when it is unoccupied. Keep it set and ready through normal service. Train the team to offer it naturally and to preserve an equivalent view, menu, presentation, lighting, and conversation rather than treating it as an exception at the end of the room.

Set capacity from service, not available length

A long counter can physically accept more stools than the kitchen can serve well. Capacity should reflect the number of plates the team can finish together, how many guests one chef can address, server access, beverage steps, dish return, and the intended pace of the menu.

Mark stool centerlines on the floor and place the actual chairs. Add people with different body sizes, winter clothing, bags, and dominant hands. Ask everyone to use a menu, water glass, wine glass, napkin, flatware, small dish, and phone. Watch elbows when two neighbors eat at the same time.

Then serve a course across every place. If the team has to stagger presentation because the landing cannot hold eight plates, decide whether that is part of the experience or a constraint. Removing one seat may improve conversation, plate timing, accessibility, and average comfort more than a narrow ninth position improves revenue.

Test stools, overhang, and foot support together

Stool comfort comes from the complete section: seat height, counter height, cushion compression, back angle, arms, foot support, knee space, edge thickness, and the time guests remain seated. A padded bar stool can still become tiring if feet cannot rest or the back ends below the point where support is needed.

Use the proposed stool at the proposed counter for the full meal duration. Have different people sit, turn, stand, place a coat, retrieve a bag, and let another guest pass behind. Check whether arms collide, legs hit brackets, and the stool drifts into the aisle every time somebody stands.

Choose a reset position and make it visible to staff through joints, floor cues, or measured placement. Fixed-looking order in a rendering does not survive cleaning unless the team can reproduce it quickly.

Protect the guest aisle behind occupied seats

The aisle must work with stools occupied and pulled to a comfortable position. It may carry arriving guests, beverage service, clearing, managers, and someone leaving for the washroom. Coordinate its required width, accessible route, egress, occupancy, and fire-safety role with the applicable local rules and qualified professionals.

Walk the aisle carrying a tray while somebody pushes back from every stool. Pass another staff member. Pick up a dropped napkin. Help a guest stand. Include the loose chair at the lowered end, because its position may vary more than the repeated stools.

Keep bag stands, floor lights, signboards, plants, and display objects outside the aisle. Under-counter hooks can help with small bags when they are easy to find and do not interfere with knees, accessibility, or cleaning. Large luggage and coats need a separate policy and storage route.

Place the service gate at the right end

A service gate at one end can separate staff circulation from the guest aisle, but only if it opens into useful clear space. Watch door or gate swing, counter edges, floor changes, hot plates, and the first stool. The nearest guest should not have to tuck in every time a server enters.

Trace clean service and dirty return through the gate. If both directions meet at the same second during each course, add a secondary landing or change the choreography. A gate that looks generous in an empty room can become blocked by one tray stand or spare stool.

Write what happens if the gate is unavailable. Staff should not lift trays over guests or climb through a lowered counter opening. Equipment failures, cleaning, and maintenance need safe alternative routes planned with the wider restaurant.

Give plates a clean landing sequence

The pass needs enough controlled surface for the largest synchronized pickup, plus garnishes, tools, checks, and the chef’s hands. More depth is not automatically better. A deep landing can move the chef farther from the guest and encourage stacks of plates to live in view.

Lay out the complete course with real crockery. Include unusual bowls, cloches, boards, sauce vessels, and allergy-specific plates. Rehearse who finishes each item, who checks it, who presents it, and where hands move. Separate hot edges and fragile glass from the guest side.

Define the dirty return point somewhere else. Used plates carry food residue, cutlery, napkins, and glassware; they should not pause beside the next clean course. Coordinate food-safety and health requirements with qualified local professionals rather than relying on the visual boundary of a counter.

Coordinate food protection with conversation

A screen or level change may help protect food and separate zones, but it can also reflect pendants, distort faces, and block speech. The right solution depends on the food process, equipment, heat, splash, local health rules, and how directly chefs interact with guests.

Build the complete section in clear material at full height. Sit and stand on both sides. Listen through it. Look for double reflections of globe lights and the kitchen. Check where staff clean the lower edge and whether fixings create soil traps.

Do not reduce a required barrier simply to improve a photograph. Coordinate the design with the authority having jurisdiction and food-safety professionals, then improve lighting and acoustics around the compliant assembly.

Design ventilation before decorative lighting

Guests at a chef’s counter are close to heat, vapor, odor, noise, and air movement. Extraction must capture the actual equipment and cooking process while replacement air keeps the room comfortable. A hood that works technically can still produce a cold draft at one seat or make quiet presentation impossible.

Coordinate equipment loads, hood type, capture, makeup air, grease, exhaust route, fire suppression, noise, access, cleaning, commissioning, and local mechanical and fire requirements with qualified specialists. Test under the busiest realistic cooking condition, not with one pan during an empty-room walkthrough.

Keep decorative fixtures, art, and objects away from the plume and cleaning zones. In the Onyx concept, the chandelier belongs to the guest edge rather than the cooking line. That separation must be verified in the physical project; a generated image cannot model airflow or heat.

Give the guest counter one coherent light

One fixture family can define the dining edge while concealed task lighting serves the pass. The guest light should support food color, faces, menus, glassware, and the counter surface without competing with the chef’s work or reflecting harshly in the screen.

The Minimalist Pendant Light for Restaurants and Bars currently offers one six-head style in black and gold variants. The listing identifies iron for the main body, glass for the shades, and one pendant-light unit in the packing list. Confirm the selected finish, exact arm geometry, total span, shade dimensions, sources, output, distribution, color rendering, glare, dimming, voltage, drivers, suspension, canopy, weight, structure, cleaning access, replacement glass, certification, and qualified installation.

Build or borrow a full-size fixture outline before ordering. Check the outer globes against the hood, plate landing, chef sightlines, raised stools, and lowered end place. A six-light form may be too broad for a compact counter even when its visual rhythm feels right.

Use smaller pendants only when the counter rhythm needs them

Separate pendants can follow individual seating bays or divide a longer counter into smaller groups. They also multiply suspension points, reflections, cleaning, alignment, and opportunities for one light to hang in a chef’s view.

The Retro Glass Restaurant Pendant Light currently offers 30 cm semicircle forms in brown and white, both listed with tri-colored light. The page identifies glass for the shade and one chandelier in the packing list. Confirm what “tri-colored” means for switching or control, along with actual finish, source, output, distribution, color rendering, dimming, voltage, driver, suspension, canopy, weight, heat and grease exposure, certification, cleaning, and qualified installation.

Mock up the number, spacing, and height before committing. View the row from the guest entrance and from the chef’s station. If several shades turn the counter into a ceiling obstacle course, return to one coherent feature or quieter architectural light.

Light the rear aisle without creating another focal point

The aisle behind stools needs enough light to read chair legs, belongings, floor changes, and the way out. It does not need a second decorative spectacle. Wall light can lift the perimeter and reduce the contrast between a glowing counter and a dark route.

The Adjustable Wooden LED Restaurant Wall Lamp currently offers small 4W and large 6W forms in black or white, with warm, white, and neutral 4000K variants. The listing references wood, LED, 111–240V information, and one reading light in the packing list. Confirm the selected size, finish, color appearance, actual adjustment, output, distribution, projection, glare, controls, driver, mounting, wiring, voltage compatibility, certification, cleaning, and qualified installation.

Test a sample at seated and standing eye level. Keep it outside shoulder movement and routes. Aim light toward useful surfaces without creating a bright reflection in polished stone or ribbed glass.

Control reflections at every seated viewpoint

Black tile, stainless steel, glass screens, polished stone, and dark windows can multiply a small bright source. Sit in every position with all lighting scenes active. Move a white plate through the pass and watch the screen. Check the view when the kitchen task light is brighter than the dining room.

Use shielding, diffusion, matte finishes, careful angles, and separate control zones. Dimming may reduce intensity but does not move a reflected globe out of a guest’s view. Record approved scenes for arrival, cooking, presentation, cleaning, and maintenance.

Include emergency and required safety lighting in the review. A beautiful low-light scene is not the only condition the room must support.

Make speech possible over kitchen sound

If chefs present food, speech intelligibility is part of the service. Extraction, refrigeration, induction fans, dishwashers, clattering plates, music, and hard surfaces all compete with a quiet explanation. Guests then lean forward, and chefs repeat the same sentence eight times.

Review equipment sound before purchase where possible. Isolate vibration, distribute music evenly, and keep loudspeakers away from the presentation line. Coordinate suitable acoustic ceilings, wall systems, upholstery, and other absorptive materials with qualified specialists, including cleanability, grease, moisture, durability, and fire performance.

Test while the kitchen operates, seats are occupied, and the restaurant beyond is busy. An empty counter with extraction on its lowest setting is not the service condition.

Put artwork on the guest side of the boundary

One piece of art can identify the arrival end and give the eye somewhere to rest when the kitchen pauses. Keep it away from the hot line, grease plume, splash, and repeated chair contact. It should not become a backdrop that competes with every plated dish.

The African Woman Frameless Restaurant Canvas Art currently offers no-edge and 5 cm edge options in 20 × 30 through 60 × 80 cm sizes. The listing refers to canvas, spray-paint processing, customer-selected framing, and one decorative painting. Confirm the delivered image, dimensions, orientation, print, edge treatment, frame or stretcher, color, lightfastness, cleaner response, fire requirements, spacing, and secure mounting.

Print the proposed size on paper and view it from every stool. Keep the lower edge clear of seated heads and bags. The artwork shown in a concept image may not represent exact delivered scale or color.

Keep sculpture off the working counter

A chef’s counter does not have spare decorative surface. Food, plates, glassware, hands, heat, and cleaning all take priority. If the concept needs one object, give it a protected niche with a stable base, enough shelf capacity, and no reason for staff to move it during service.

The Resin Entry Console Figurine Sculpture currently offers white and black Windchaser variants, identifies resin, and lists one sculpture in the packing list. Confirm the delivered silhouette, dimensions, weight, footprint, center of gravity, fragile projections, finish, color transfer, cleanability, fire requirements, shelf capacity, stability, anchoring, and replacement expectations.

Run the complete cleaning routine around the sample. If the figure must be removed to wipe the shelf or is touched whenever a cupboard opens, the niche is not protected enough.

Keep menu and event messages small

A tasting counter may need to show seat numbers, dietary confirmations, beverage pairings, a private-event message, or a short menu note. The guest should see the relevant information without every place becoming a sign display.

The Nordic Minimalist Wood & Acrylic 6-Inch Display Frame is described as a wood-base and transparent acrylic display weighing 320 g, with a 120 × 170 × 60 mm package size. Its page warns that “6-inch” is a supplier variant name rather than a guaranteed insert aperture. Confirm the actual insert area, orientation, stability, edge finish, cleaner compatibility, glare, typography, and delivered dimensions with a sample.

Keep displays out of the plate landing and chef’s reach. Remove obsolete cards immediately. A dietary note should remain in the reservation and kitchen system rather than relying only on a tabletop card.

Treat wall shelving as display, not kitchen storage

Open shelves near a counter attract bottles, books, ceramics, awards, and equipment. The more varied the contents, the harder the wall is to clean and the less clearly the cooking line reads. Decide whether a shelf is operational or decorative; do not let it drift between both.

The Restaurant Wall-Mounted Display Shelf currently offers gold double-circle two- and three-tier forms and a moon-shaped three-tier form. The listing identifies iron and one wall-mounted shelf in the packing list, while its tier information is inconsistent. Confirm the exact selected form, complete dimensions, tier count, weight, finish, shelf depth, capacity, fixings, wall construction, edge safety, cleanability, fire requirements, and secure installation.

Use it only on a suitable guest-side wall, away from food preparation, heat, grease, head movement, and circulation. Place the intended objects on a full-size mockup. If they crowd the chef’s-counter story, leave the wall quiet.

Separate decorative trays from serviceware

A decorative object should never be mistaken for a food plate, garnish bowl, hot-pan rest, or candle holder. This matters especially at an open counter, where guests see objects move between kitchen and dining zones.

The Modern Organic Black 20cm Decorative Accent Tray is currently described as a 20 × 20 × 5 cm stone decorative piece weighing 1,565 g. Its page explicitly says it is not represented as food-contact safe, heat resistant, or suitable for open flame. If it anchors a protected guest-side console, confirm the physical finish, edges, weight, stability, variation, cleaner compatibility, and a protective pad.

Label and store serviceware through the kitchen’s approved system. If staff could reasonably confuse a decorative tray with an operational object, remove it from the working environment.

Plan power and data before closing the millwork

List reservation tablets, payment terminals, task lights, warming or holding equipment, induction units, refrigeration, printers, charging, audio, control panels, and service outlets. Map power, data, ventilation, heat, access, cable paths, cleaning, isolation, and replacement.

Keep guest charging separate from kitchen and life-safety systems. Do not run extension leads through the service gate or behind stools. Provide access panels that can open without dismantling the counter or moving a seated guest.

Write failure modes. If task lighting, extraction, refrigeration, a payment terminal, or a cooking appliance fails, the team should know what service can continue safely, what must stop, and who isolates the equipment. Concealed technology still needs a visible operating plan.

Design finishes around heat, grease, and touch

The guest edge sees elbows, rings, bags, spills, and cleaning. The kitchen edge sees heat, oil, sauces, tools, steam, and stronger chemicals. One finish schedule may not suit both sides even when the counter appears continuous.

Test stone, timber, metal, glass, grout, upholstery, paint, and sealants with the real menu and approved cleaning products. Review joints, edge chips, thermal movement, staining, fingerprints, slip, color change, repair, spare material, and replacement lead times.

Detail corners where crumbs and liquid collect. Avoid fine open texture immediately beside food. Inspect dark surfaces under bright cleaning light; black finishes hide some marks and reveal dust, oil, and wiping streaks.

Edit the open-kitchen view every day

Guests see more than the plated course. They see towels, labels, squeeze bottles, pans, handwashing, waste movement, staff communication, and the way equipment is cleaned. Decide which activities belong in view and provide real storage for everything else.

Use shadow boards, drawer layouts, shelf limits, and closing photographs so the team can reproduce the intended scene. Keep legally required labels and food-safety systems fully functional; the visual edit should support safe work, not hide necessary information.

The Concrete Wine Room demonstrates a related discipline at a different counter type: the focal wall, service surface, and circulation each have a clear role. A chef’s counter needs the same hierarchy, with the cooking sequence replacing bottle display as the center of attention.

Rehearse one complete menu at full capacity

Seat eight people, including somebody at the lowered end position. Give them coats and bags. Run the actual music, ventilation, lighting, menu cards, glassware, beverage pairing, and every course. Use the real chefs and servers wherever possible.

Watch each course from preparation through clearing. Time the plate landing. Listen to the presentation from the first and last seats. Check heat, smell, reflections, reach, chair movement, the service gate, dirty return, and the route behind guests. Ask diners when they became uncomfortable or unsure what to do.

Fix recurring friction physically. Move a stool centerline. Change an overhang. Lower glare. Add a clean landing. Remove a display object. One small correction made before opening is better than a staff workaround repeated for every course.

Create opening, service, and closing counter checks

At opening, clear required routes and the service gate, set all seats, inspect the lowered end place, test the pass and food-protection elements, start ventilation, set lighting, confirm equipment, clean glass and stone, secure art and sculpture, and remove anything that does not belong in the approved setup.

During service, keep clean and dirty landings separate. Reset stools and bag hooks, record equipment faults, isolate damaged electrical items, clean spills, maintain the open-kitchen edit, and protect the lowered position from becoming storage. Do not let decorative objects migrate onto working surfaces.

At close, complete the kitchen’s food-safety and cleaning procedures, inspect counter edges and seats, clean screens and fixtures as approved, reset the aisle and gate, secure displays, report maintenance, and photograph the final state. The next service should begin with a working sequence, not yesterday’s shortcuts.

Restaurant chef’s counter design FAQ

How deep should a restaurant chef’s counter be?

There is no universal depth. It depends on the guest place setting, counter height, overhang, edge construction, food-protection strategy, plate landing, chef reach, service method, equipment, and required separation between food work and guests.

Build a full-size section and serve the actual menu across it. Coordinate food-safety, accessibility, structure, heat, and local requirements with qualified professionals.

How many seats should a chef’s counter have?

Capacity should match synchronized plating, chef-to-guest communication, server access, beverage service, dish return, and the intended duration of the experience. Available linear length is only one input.

Mock up every centerline with occupied seats. If one fewer place improves course timing, accessibility, aisle clearance, and comfort, the smaller number may produce the stronger restaurant.

Does a chef’s counter need an accessible-height section?

Accessible dining must be coordinated with the applicable local requirements for routes, clear floor space, dining surfaces, knee and toe clearance, reach, seating, doors, washrooms, egress, payment, and equivalent service. A removable stool at a high counter is not automatically an accessible position.

Integrate the appropriate dining place into the normal experience and keep it ready. Confirm the actual design with qualified local professionals.

How should a chef’s counter be lit?

Separate useful guest light from kitchen task light. The dining edge needs flattering faces, accurate food color, readable menus, comfortable contrast, and controlled glare. The pass needs sufficient task illumination without bright reflections in glass or polished stone.

Test the complete scene at every seat with the kitchen operating. Confirm output, distribution, color rendering, dimming, controls, voltage, heat exposure, structure, cleaning, maintenance, emergency-lighting coordination, certification, and qualified installation.

How do you reduce noise at an open-kitchen counter?

Start with equipment, extraction, replacement air, vibration, dish handling, music distribution, and the location of loud tasks. Then coordinate suitable absorptive ceilings, wall systems, upholstery, and other materials for the actual grease, moisture, cleaning, durability, and fire conditions.

Commission the room during realistic cooking with every seat occupied. The goal is not silence; it is a level at which chefs can present food and neighboring guests can speak without competing with machinery.

A chef’s counter feels intimate when the difficult boundaries disappear into the operation. Guests can sit comfortably, see the work, hear the story, and receive each dish without wondering where to move. Chefs can cook, plate, present, and reset without decorative fixtures, stools, or dirty returns interrupting the sequence. Build one full-size counter section, then rehearse the whole menu. The most valuable design decisions will appear between courses.
